Overview



Introducing the Eco-Flow-F® Aquatic Variable Frequency Drive for fountain control.

Eco-Flow-F combines functionality, quality, and reliability to provide the user with an unparalleled VFD experience. Fully configured for control of fountains, Eco-Flow-F offers an array of unique features to ensure complete optimization of fountain pumps while also maintaining ease of operation and user-friendliness.

Eco-Flow-F is designed for 3-phase or (optional conversion for) single-phase centrifugal pumps ranging from fractional thru 100 horsepower.

Key Features & Benefits

  • Fixed speeds 24hr.

  • Fixed speed daytime / fixed speed nighttime

  • Six programmable steps with ramp up or ramp down or constant speed

  • Two preset wind speeds for inclement weather situations

  • Rugged NEMA 12 construction

  • Aquatic Controller with Modbus communication

  • Interface to BMS (Building Management System) for monitoring and control

  • Protection against Pump dry run, cavitation, worn impeller, closed suction / discharge valves, loss of prime, power loss

  • Live local and national support for prompt assistance if needed



Gallery



Technical Data


INSTALLATION ENVIRONMENTIndoor, wash down, corrosive gases possible
SUPPLY VOLTAGE3 x 208/230V, ±10% / 3 x 480V, ±15%
HP RANGE1 - 100 HP
CONSTRUCTIONNEMA 12
OPERATING TEMPERATURE32 - 104°F (122°F with de-rating)
SUPPLY FREQUENCY50 - 60Hz
RELATIVE HUMIDITY90% or less
MAX. ALTITUDE WITHOUT DE-RATING3,280 ft. de-rate by 1% for every 328 ft. over this. Max. 13,123 ft.
OUTPUT VOLTAGE0 - Mains Supply Voltage
RATED OUTPUT CURRENTCurrent rating of VFD, 120% overload for one-minute
VFD EFFICIENCY AT NOMINAL LOAD97%
SPEED CONTROLvia Eco-Flow Controller. Programmable speeds based on time
COMMUNICATION PROTOCOL BETWEEN VFD AND ECO-FLOW CONTROLLERModbus

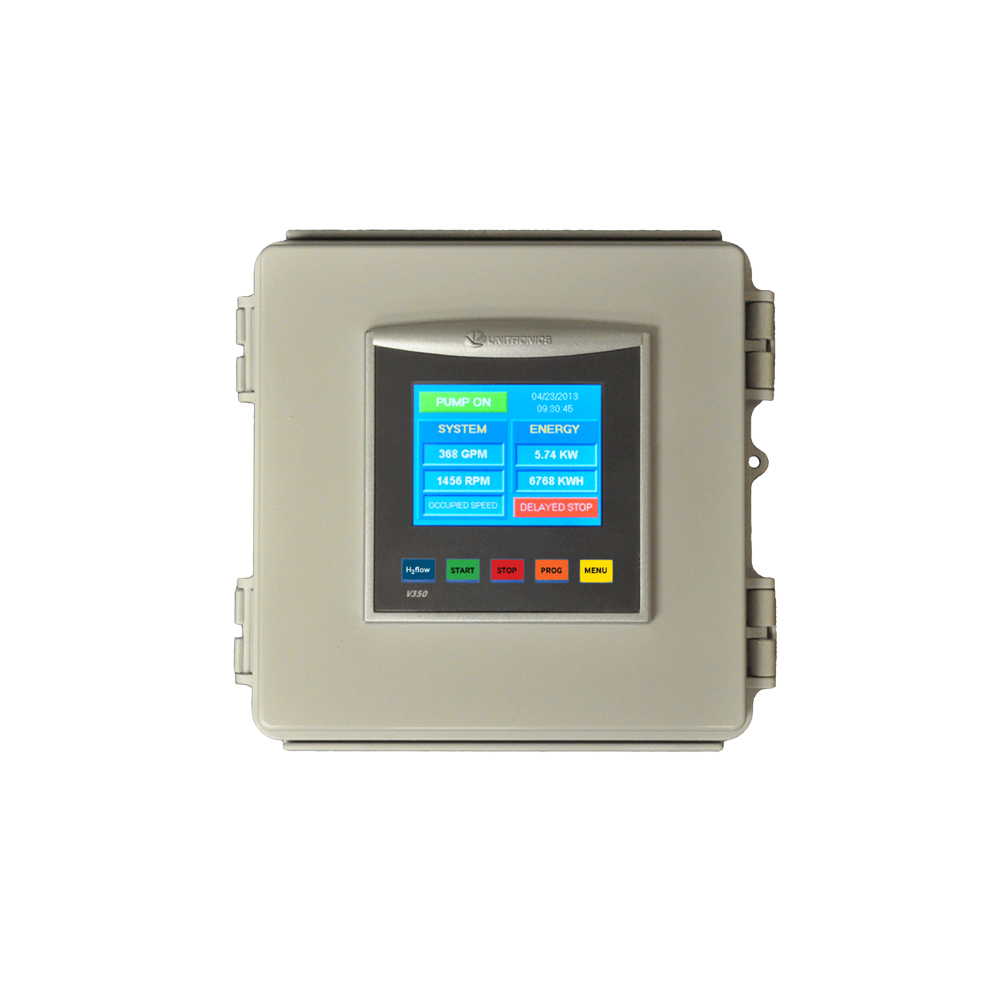

Fountain Controller

Complete optimization & customization of fountain operation

Complete control of fountain applications couldn’t be easier, thanks to the Eco-Flow Fountain Controller.

The Fountain Controller’s intelligent display can quickly and easily be configured to the user’s desired settings. Customization of fountain appearance, hours of operation, auto shutdown for inclement weather and much more, can be easily achieved via the user-friendly touchscreen.


Product Literature


 Click here to download product literature for the FDU Variable Frequency Drive.


Click below to view downloadable documents related to this product.
