The Emotron MSF 2.0 Soft Start offers optimized start and stop sequences, advanced braking techniques and built-in monitor functionality. The MSF is developed for pump, fan, compressor, blower, crusher, mill, mixer, and saw applications.

Key Features

  • Torque ramp starting and stopping
  • Torque ramp with current limit
  • Built-in M20 Shaft Power Monitor
  • Jog forward and jog reverse
  • Motor braking
  • Four parameter sets
  • Supply monitoring and protection
  • Full voltage (emergency) start
  • Pump application software
  • Multiple parameter digital readouts



Need a more compact Soft Start solution?



Technical Data



emotron msf 2.0

Rated Power:        7.5-1,600 kW
Supply Voltage:    200-690V, 3-phase
Rated Current:      17-1,650 A
Protection Class:  NEMA 1 / IP20 (up to 960A)
                                NEMA 0 / IP00 (up to 1,650A)
Approvals:             CE, UL, DNV, GOST R



product literature


Click here to download product literature for the FDU Variable Frequency Drive.


Click below to view downloadable documents related to this product.


smooth starts reduce your costs

Efficient torque control ensures an ultra-smooth start with constant acceleration. Reduced start currents and mechanical stress means lower installation, energy and maintenance costs. Torque boost can be used to overcome initial torque peaks when starting, for example, a loaded crusher.



protect your process and maximize efficiency

A built-in shaft power monitor protects your process from damage, downtime and inefficiency. It reacts immediately if a crusher is jammed, a pump is running dry or a fan filter is blocked. Any deviation from your selected load levels will result in a warning or a quick but smooth stop.



smart stops - smooth or quick

Emotron MSF offers efficient solutions, whether the need is a smooth or a quick stop. A linear stop of a pump eliminates the risk of water hammer. No motor-controlled valves are needed. Built-in braking functionality ensures quick and safe stops of mills and saws without mechanical brakes.



features & Functionality

Some of the key features that set the MSF apart from other Soft Starts:

>TORQUE CONTROL Torque controlled starting and stopping provides optimum control of the driven equipment

>TORQUE CONTROL

Torque controlled starting and stopping provides optimum control of the driven equipment

>SHAFT POWER MONITORING Shaft Power Monitoring protects the driven equipment from unnecessary damage and downtime.

>SHAFT POWER MONITORING

Shaft Power Monitoring protects the driven equipment from unnecessary damage and downtime.

>JOG FORWARD & JOG REVERSE An array of features, such as jog forward and jog reverse allow for complete control of the driven equipment.

>JOG FORWARD & JOG REVERSE

An array of features, such as jog forward and jog reverse allow for complete control of the driven equipment.


Emotron MSF used to perform soft start on an odor control fan application.



An Emotron MSF is used to provide a torque controlled soft start and soft stop on an odor-control-fan application.


programmable inputs increase flexibility

Four programmable inputs offer great flexibility. The rotating direction of a fan can be controlled by programming two inputs for start left/right. No external PLC is required. You can connect an external alarm signal to stop the motor if a problem occurs. An analogue sensor can be connected directly to the Emotron MSF to control the start and stop levels of a pump.

quick and cost-efficient installation

Installing an Emotron MSF is quick and cost-efficient. There is no need for the additional equipment often required – DC brakes, motor protection relays, mains failure relays, load monitors, meters, displays, or switches. Everything you need is included in the Emotron MSF unit.



Starting currents reduced by +20% versus reduced voltage Soft Starts

more than just another soft start

With torque controlled starting and stopping, and a built-in patented shaft power monitoring feature, the MSF's ability to provide control and complete protection of your applications is unparalleled.

The MSF is among the most advanced Soft Starts available. Unlike previous generations of electric Soft Starts, the MSF starts and stops the motor using the torque controlled ramps. This principle not only provides ultra smooth starting and stopping, but also lowers starting currents by an additional 20% versus reduced voltage Soft Starts.

MSF versus alternative starting methods (x FLA)

MSF lowers starting currents by an additional 20% versus reduced voltage Soft Starts.

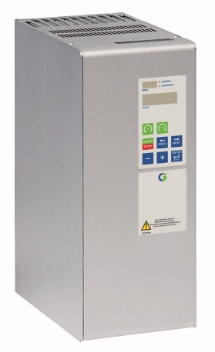

Emotron MSF 2.0 Soft Start

Emotron MSF 2.0 Soft Start

MSF 2.0 Soft Start, 525V type

All units rated for 'Normal Duty' applications with 460V motor power at mains voltage.
