TSA-Plus advanced motor control & pump protection

The H2flow TSA-Plus takes motor control to a new level. Soft torque starting, intelligent load monitoring, and smart stops are all included and accompanied by a robust and compact design. The TSA-Plus was developed specifically to provide advanced motor control and pump protection for sealless magnetically-driven pumps.

Key Features

  • Intelligent shunt-rated bypass contactor
  • Torque ramp with current limit
  • Motor load monitoring with auto-set of alarm levels
  • Alarm history with time and date stamp as well as a readout of the motor load when the problem occurred
  • Pump protection for up to four different processes performed by the same pump
  • Molded Case Circuit Breaker with thru-the-door handle mechanism
  • Programmable logical and timer functions with Real Time Clock
  • Multi-lingual control panel with single-function keys and copy function
  • Compact dimensions
  • Conformal coated circuit boards
  • Slow speed and jog operation
  • Smart stops with built-in braking functionality


Technical Data



emotron TSA-Plus

Rated Power:        5-20 HP @230V / 10-40 HP @460V
Supply Voltage:    230V, 3-phase
                               460V, 3-phase
Control supply:    120V, 1-phase
Rated Current:     Model dependent
Protection Class:  NEMA 4 / IP65
Approvals:            UL/cUL



product literature


Click here to download product literature for the FDU Variable Frequency Drive.


Click below to view downloadable documents related to this product.


HMD Kontro.jpg

PROTECTED RIGHT FROM THE START

The benefits of Sealless, Mag Drive pumps are well-known and respected. However, the reality is that system upsets occur and pumps are run dry. Whereas a conventional pump can tolerate this, most Mag Drive pumps cannot. Failure to protect the pump will almost certainly result in significant repair or replacement costs...



After more than 25 years of protecting Mag Drive pumps from run dry conditions, our renowned M20 Shaft Power Monitor now has a 'Big Brother'. With far greater functionality, our TSA-Plus not only incorporates the benefits of the M20, but also introduces an array of additional, unique features that are not available from any other product. Features such as complete motor control with soft starting and supply monitoring will greatly reduce the life cycle costs of these types of pumps.

The TSA-Plus is a fully assembled solution with so many standard features that it's hard to imagine how so much could cost so little!



eliminate dry run failure

Replacing bearings, magnets and containment shells can be very expensive. The damage can often be so severe that a complete replacement pump may be required.

A feature of the TSA-Plus is its patented Shaft Power Monitoring technology. The pump's working load is constantly monitored and compared to protection parameters. An abnormal condition, such as dry-running, will cause a drop in shaft power and the TSA-Plus will automatically shut the pump down - before damage occurs.

Above: Damaged magnets and containment shells are typically seen when a pump continues to operate in a dry-running condition. The H2flow TSA-Plus works as a safeguard against such failures.


smooth starts reduce mechanical stress

Adjusting the motor torque is best done by controlling the current in all three phases. 3-phase control offers symmetrical and balanced currents without the drawbacks of additional energy losses, noise and vibration normally connected with 2-phase Soft Starters.

Emotron TSA-Plus incorporates 3-phase control together with sophisticated algorithms for torque control. Conventional Soft Starters use a pre-defined voltage ramp to control the start. With the H2flow TSA-Plus, the actual motor torque is continuously calculated and controlled according to the application requirements. This torque control ensures an ultra-smooth start with constant acceleration and a further 30% reduction in starting current. The smooth starts also lead to less mechanical stress, improved process control and reduced maintenance costs.

Soft Starting a Mag Drive Pump also greatly reduces the risk of magnetic decoupling due to high starting torques and rapid acceleration. Pump OEM's may even consider the possibility of reducing the size / density of the magnets.

Starting currents reduced by +30% versus reduced voltage Soft Starters

tsa-plus versus alternative starting methods (x fla)

TSA-Plus lowers starting currents by an additional 30% versus reduced voltage Soft Starters.

features & Functionality

>TORQUE CONTROL The TSA-Plus features torque controlled starting and stopping, resulting in optimum control of the driven equipment.

>TORQUE CONTROL

The TSA-Plus features torque controlled starting and stopping, resulting in optimum control of the driven equipment.

>DOOR MOUNTED KEYPAD The TSA-Plus features an easily accessible and user-friendly digital keypad on the door of the control cabinet.

>DOOR MOUNTED KEYPAD

The TSA-Plus features an easily accessible and user-friendly digital keypad on the door of the control cabinet.

>MOTOR & PUMP PROTECTION TSA-Plus protects the driven equipment with superior Shaft Power Monitoring capability, preventing run-dry situations.

>MOTOR & PUMP PROTECTION

TSA-Plus protects the driven equipment with superior Shaft Power Monitoring capability, preventing run-dry situations.

>COMM SOFTWARE A wide variety of communication options are available for TSA-Plus.

>COMM SOFTWARE

A wide variety of communication options are available for TSA-Plus.

>USER-FRIENDLY TSA-Plus has a user-friendly interface and requires no additional components.

>USER-FRIENDLY

TSA-Plus has a user-friendly interface and requires no additional components.

>JOG FORWARD & JOG REVERSE Features such as jog forward and jog reverse allow for complete control of the driven equipment.

>JOG FORWARD & JOG REVERSE

Features such as jog forward and jog reverse allow for complete control of the driven equipment.

>MULTILINGUAL TSA-Plus features a multilingual control panel with single-function keys and copy functionality.

>MULTILINGUAL

TSA-Plus features a multilingual control panel with single-function keys and copy functionality.




THE ULTIMATE SOLUTION

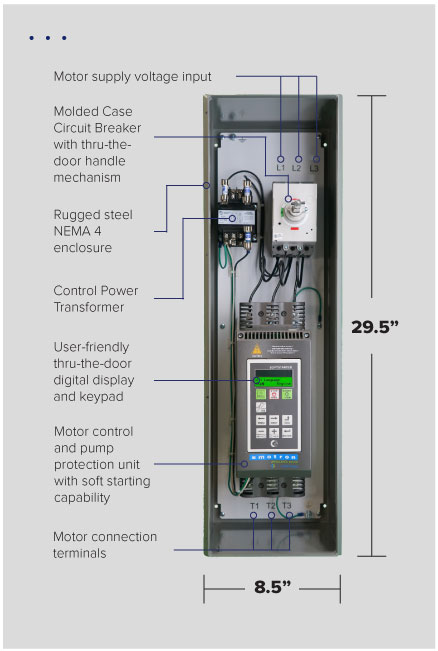

TSA-Plus is a complete package solution for mag-drive pump control and protection. TSA-Plus features advanced pump and motor protection via shaft power monitoring; soft starting capability; Molded Case Circuit Breaker with thru-the-door handle mechanism; user-friendly thru-the-door digital multilingual display; a wide array of communication options; supply monitoring; readouts of pump run time, consumed energy, alarm history, and much more!


Slow speed and jog operations

Apart from ramping up and down the speed between zero and rated motor speed, Emotron TSA Soft Starts offer low speed operation in both forward and reverse direction without additional hardware. Slow speed or jogging forward or backward can be useful for aligning a load or having the motor running at low speeds for test or service purposes. Examples of applications where such low speed or jog operation is valuable are loading/unloading of centrifuges or mixers or positioning of feeding conveyors.

compact dimensions

Emotron TSA Soft Starts are among the smallest in their class. Due to the space-efficient construction and somewhat unique bypass design, a compact and user-friendly footprint has been achieved.

smart stops - smooth or quick

Emotron TSA offers efficient solutions, whether the need is a smooth or a quick stop. A linear stop of a pump eliminates the risk of water hammer. No motor-controlled valves are needed. Built-in braking functionality ensures quick and safe stops of mills and saws without mechanical brakes.

Multilingual control panel with single-function keys and copy function

Designed for global application the Emotron TSA soft starters carry a multilingual display unit as standard. The control panel has an easy-to-use menu system and dedicated menu and start/stop keys.

real time clock and programming blocks

The Emotron TSA Soft Start offers built-in programming blocks, such as logical functions, comparators, SR Flip-Flops, counters and timers. This opens the way for customizing functionality according to your requirements. A Real Time Clock provides information about the actual date and time of the day. The real time information is used for time registration in the event log and to enable pre-programmed starting and stopping at certain date and time.


H2flow TSA-Plus

H2flow TSA-Plus



TSA-Plus Models & Ratings

NOTE: Models for 230V applications have a '-2' following the part number shown in the above table. Models for 460V applications have a '-4'. e.g., TSA-P-XX-2 or TSA-P-XX-4.
