FARAMAG™ FM750
FaraMag™ FM750 Mag Meters
Superior Fluid Measurement for an Array of Applications
H2flow Controls has over 20 years of specialist competence integrating flow management solutions to a variety of different industries and applications. Built to exacting standards, the FaraMag™ FM750 represents precision in its finest form.
FaraMag FM750 is a versatile mag meter that is available for a wide range of pipe diameters (0.5” - 120” / DN15 - DN3000). Because of their incredible accuracy and reliability, FM750 mag meters are also ideal for many critical applications. Across the entire model range, FM750 boasts an impressive ±0.25% average accuracy.
KEY FEATURES
No moving parts to impede the flow
Bi-directional flow measurement
Compact and remote versions available
Intuitive menu structure and available handheld remote controller for simplified programming
LCD backlit display
Long operating life
±0.25% average accuracy
Standard NEMA 4 / IP65 protection class; available NEMA 6 / IP67
Select from a multitude of available units of measurement
Available for 0.5 - 120-inch (DN15 - DN3000) pipe diameters
Self-diagnosis and auto-detection feature
Displays instantaneous flow and cumulative flow
Available with a wide array of liner and electrode materials
HART, RS232 and RS485 communication options
120-230VAC, 12-24VDC, 3.6V Lithium ion battery power supply options
Quality doesn’t have to be expensive, but it is priceless!
Key strengths of the FaraMag FM750 versus competing electromagnetic flow meters:
Low cost of ownership
Short lead times
Unique features, such as handheld remote controller and LCD backlit display
Wide array of equipment options
Easily accessible, direct support
Where to Buy
The FaraMag FM750 mag meter is available from these authorized partners. For more information, click on the linked logos below, or contact us.
A Versatile Solution
Although ideal for water measurement, e.g. drinking water, utility water and industrial/municipal wastewater, a wide range of available liner, sensor body, and electrode materials make FaraMag mag meters capable of handling a variety of other applications, too. Typical industries include:
Water & Wastewater
Irrigation & Agriculture
Chemical & Petrochemical
Oil & Gas
Process Manufacturing
Pharmaceutical
Food & Beverage
Mining & Aggregate
Ground Water & Reclamation
Cooling Towers
Wineries & Breweries
Pulp & Paper
| Specifications | |
|---|---|
| Diameter Range | 0.5-inch to 120-inch (DN15 to DN3000) |
| Pressure Rating | 87 - 580 psi (6 - 40 Bar) |
| Flange Types | ANSI, DIN, Tri-clamp (304SS and 316SS only) |
| Body Material | Carbon Steel, 304 Stainless Steel (optional), 316 Stainless Steel (optional) |
| Inner Liner | Neoprene, PTFE (optional), Polyurethane (optional), F46 (optional), PFA (optional) |
| Measuring Electrodes | 316 Stainless Steel, Hastelloy B (optional), Hastelloy C (optional), Titanium (optional), Tantalum (optional), Platinum-iridium alloy (optional), Stainless Steel covered with Tungsten Carbide (optional) |
| Accuracy | ±0.25% of the measured value (Relative Range); ±1.0% of the measured value (Relative Measurement) |
| Medium Temperature | Integrated Type: -4 - 158°F (-20 - 70°C); Remote Type, Neoprene & Polyurethane liner: -4 - 140°F (-20 - 60°C); Remote Type, PTFE liner, PFA liner, F46 liner: -40 - 356°F (-40 - 180°C) |
| Ambient Temperature | -13 - 140°F (-25 - 60°C) |
| Class of Protection | NEMA 4 (IP65), NEMA 6P / IP68 (optional) |
| Approvals | CE, JB/T 9248-1999, JJG 1033-2007, Ex-proof Mark: Exd [ia]iallcT5, Exmd IICT4 |
| Communication Options | Modbus RS232 protocol, Modbus RS485 protocol, HART communication protocol, Profibus DP communication protocol, GPRS Wireless Communication |

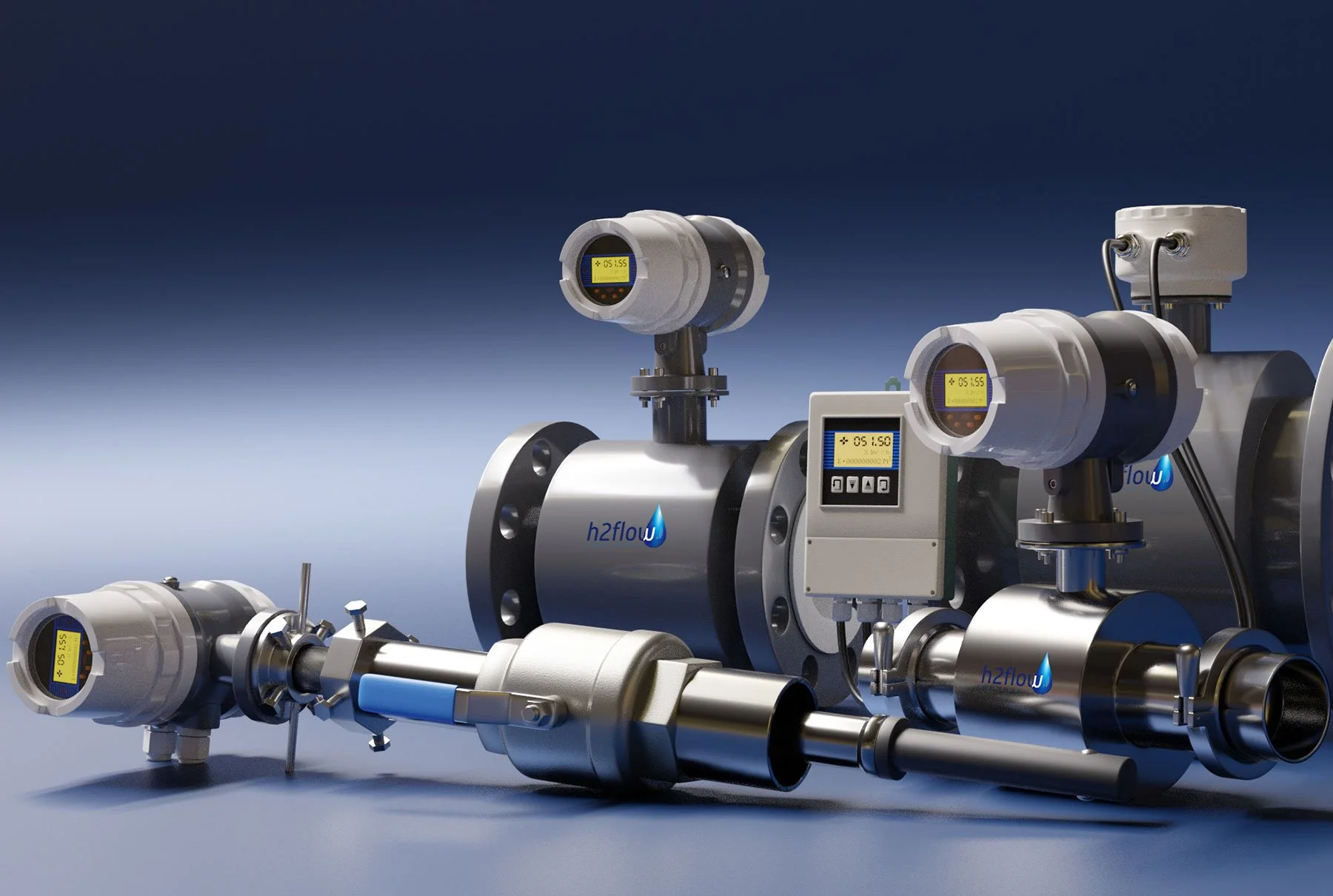

FaraMag™ FM750 Solutions
-
![Compact Type mag meter]()
Compact-Type
The FM750 is available in a variety of configurations. The compact-type allows for local access to readings on its user-friendly backlit LCD display. A variety of options, such as electrode materials and communication options are available in a wide range of sizes.
Diameters: 0.5” - 120” (DN15 - DN3000)
Accuracy: ±0.25 of Relative Range
Flange Types: ANSI, DN, Tri-clamp
-
![Remote-Type mag meter]()

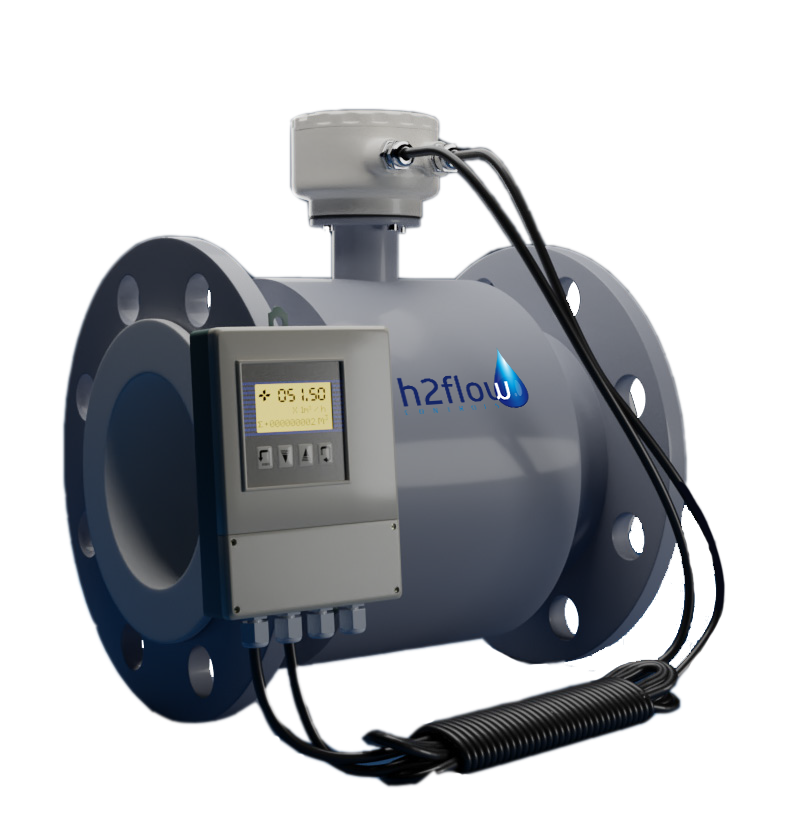

Remote-Type
The remote-type FM750 is the ideal solution for meters positioned in difficult-to-access installations. The standard cable length allows the product’s large, user-friendly backlit LCD display to be placed up to 32ft. (10M) away from the sensor body.
Diameters: 0.5” - 120” (DN15 - DN3000)
Accuracy: ±0.25% of Relative Range
Flange Types: ANSI, DN, Tri-clamp
-
![Sanitary-Type mag meter]()
Sanitary-Type
The standard carbon steel body sensor body of the FM750 can be upgrade to 304 or 316 Stainless Steel. This is ideal for many food & beverage, pharmaceutical and sanitary applications. Sanitary-type are available with ANSI, DN and tri-clamp flanges.
Diameters: 0.5” - 120” (DN15 - DN3000) ANSI and DN, 0.5” - 8” (DN15 - DN200) Tri-clamp
Accuracy: ±0.25 of Relative Range
Flange Types: ANSI, DN, Tri-clamp
-
![Insertion-Type mag meter]()

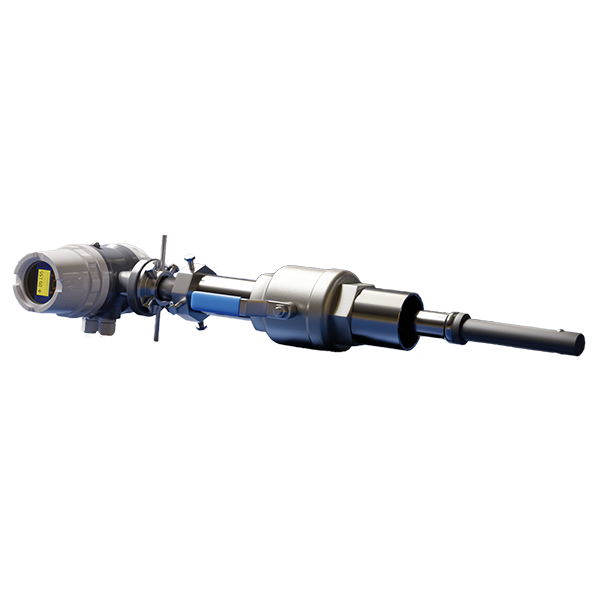

Insertion-Type
The FM750 Insertion-type mag meter utilizes the NIKURADSE principle, allowing for simplified installation and reduced costs. The meter is ideal for cast iron and cement pipe, and offers many of the same features as other FM750 models. Units are available for 8” - 120” (DN200 - DN3000) pipe diameters.
Diameters: 8” - 120” (DN200 - DN3000)
Accuracy: ±1.5% of displayed value
Flow Meter Body: Stainless Steel
FaraMag FM750 IN YOUR INDUSTRY
Sanitary
With available options for 304 and 316 Stainless Steel construction and ANSI, DN and Tri-clamp flange options, FaraMag is the perfect solution for sanitary applications.
Building Management
Accurate and reliable flow measurement for sprinkler systems, fire suppression systems, and more!
Food & Beverage
FaraMag products are ideal for a wide variety of application in the Food & Beverage industry where precise measurement of flow is critical.
Agriculture
Offers precise measurement of flow and flow totalization of fluid. Ideal for applications such as irrigation, pesticide and fertilizer applications, crop cooling, and frost control.
Water & Wastewater
Widely used in a variety of applications commonly found in water & wastewater facilities where precision flow measurement of flow is required.
Groundwater & Reclamation
Allows for precise measurement of reclaimed and remediation groundwater.
Process Manufacturing
Commonly used to measure the flow rate of fluids used in the manufacturing of goods.
Commercial Laundry
Accurate measurement of water used in commercial laundry applications.
Microchip Manufacturing
Precision flow measurement of fluids used in the production of microchips.
Aquariums
Ideal for measurement of flow in applications such as freshwater or saltwater aquarium applications.
Poultry Farming
FaraMag FM500 offers precise flow measurement for poultry farms applications.
Marine
Ideal for a multitude of demanding Marine applications.
Oil & Gas
Available with a wide array of options and features that make FM500 ideal for the tough applications commonly found in Oil & Gas facilities.
Chemical & Petrochemical
Capable of withstanding the rigors of applications in the Chemical & Petrochemical industry.
Pharmaceutical
Offering precision flow measurement for critical applications in the pharmaceutical industry.
