VS10 & VS30 Variable Frequency Drive

Although small in size, the new Emotron VS10 and VS30 drive is equipped with several advanced features. It offers great flexibility in all senses. Functionality is easily adapted to your specific application requirements.

Key Features

  • 1.1 - 16.5 Amps
  • NEMA 250 / IP20 enclosure
  • Sensor less vector control
  • S-shaped ramps for smooth acceleration
  • Memory module for parameter backup
  • Phase and current protection
  • Load loss monitoring
  • Fieldbus, Modbus-RTU, USB, and WiFi communication options



Looking for an AC Drive solution for larger variable torque applications?



Technical Data



vs10 & vs30 variable frequency drive

Rated power:        VS10 0.25-2.2 kW / 0.33-3.0 hp

                               VS30-23 0.25-2.2 kW / 0.33-3.0 hp

                               VS30-40 0.37-7.5 kW / 0.5-10 hp

Supply voltage:    VS10: 1-phase, 190–240V +/-10%

                               VS30-23: 1/3 phase, 190–240V +/-10%

                               VS30-40: 3 phase, 380–480V +/-10%

Rated current:      VS10 1.7-9.6 A

                               VS30-23 1.7-9.6 A

                               VS30-40 1.3-16.5 A @400V / 1.1-14 A @480V

Protection class:  IP20 / NEMA250

Approvals:            CE, UL, cUL, RoHS2



product literature


Click here to download product literature for the FDU Variable Frequency Drive.


Click below to view downloadable documents related to this product.


compact & flexible

The compact format offers flexible installation and the user-friendly setup will have your system up and running in no time.

Emotron VS10 and VS30 offers reliable and cost-efficient operatio of your pumps, fans, and compressors, as well as constant torque applications such as conveyors.



user-friendly

Flexibility begins with the compact bookshelf design format, which makes the units easy to install, and extends to their user-friendly setup procedure. Systems using the VS10/VS30 will be up and running in not time, ready to deliver smooth and cost-effective control of your application.




smooth and efficient operation

1. Key-hole mounting

2. Main Power Supply (removable connector ≤ 2.2 kW)

3. Motor Power Terminal (removable connector  ≤ 2.2 kW)

4. Relay output

5. Memory module (parameter backup)

6. CAN connection with shield plate fixation (option)

7. HMI interface: Control panel hot-pluggable (option)

8. I/O Terminal with shield plate (removable terminals > 2.2 kW)


simple & efficient

For simplicity, VS10 and VS30 feature a built-in PID controller for process control, and the units have efficiency class IE2 in accordance with EN 50598-2 (from the Ecodesign Directive). Robust motor control is assured thanks to sensor-less vector control. The package can also be enhanced with an optional hot-pluggable control panel.



A COMPACT PACKAGE

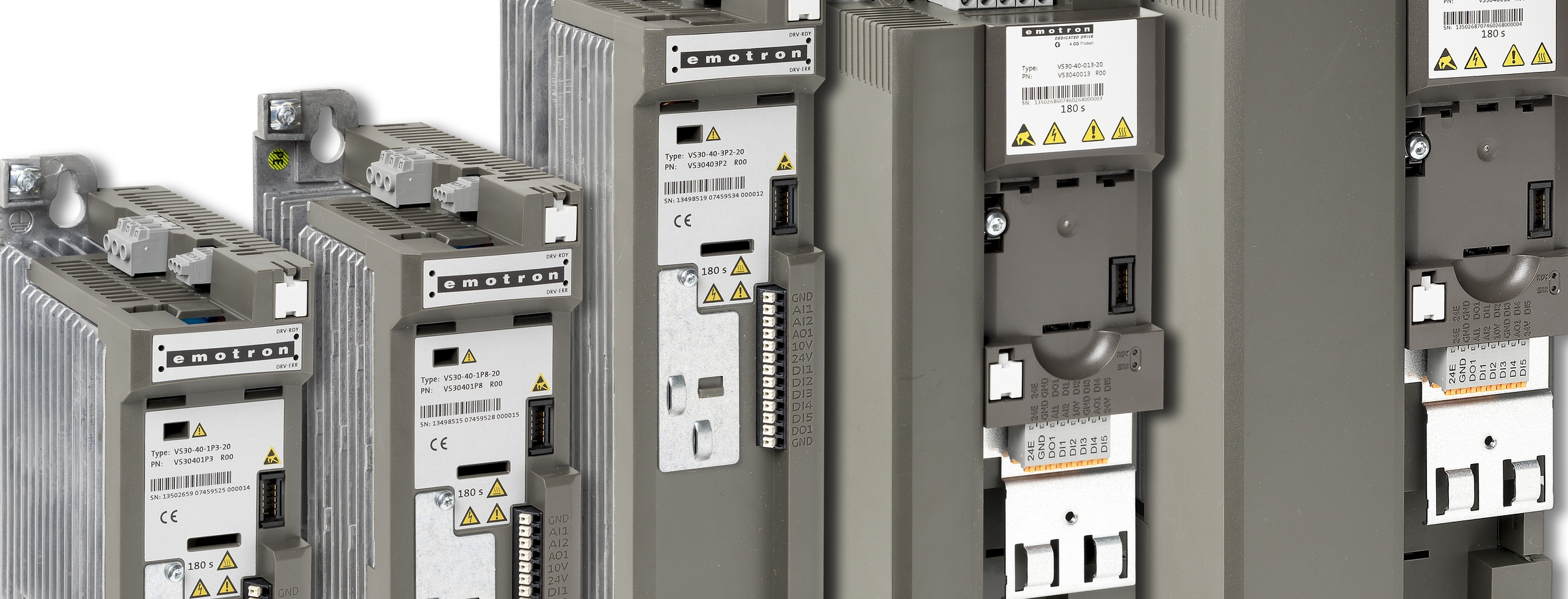

The VS10 range covers nominal ratings of 0.25-2.2 kW (1-phase 230V). The larger VS30 spans 0.37-7.5 kW (two-series; 1/3-phase 230V, 3-phase 400/480V). The smallest of these NEMA 1 / IP20-rated units are 2.36 x 6.1 x 5.12 in. (60 x 155 x 130 mm), and even the largest are only 4.72 x 10.8 x 5.12 in. (120 x 275 x 130 mm).



VS10/30 Frame Sizes:

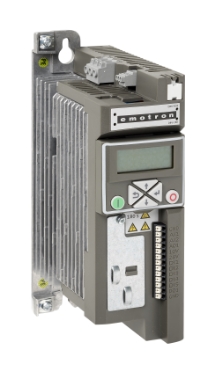

Emotron VS10 Variable Frequency Drive

Emotron VS10 Variable Frequency Drive

VS10 1-phase supply 230V

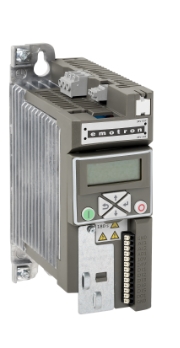

Emotron VS30-23 Variable Frequency Drive

Emotron VS30-23 Variable Frequency Drive

VS30-23 1/3 PHASE SUPPLY 230V


Emotron VS30-40 Variable Frequency Drive

Emotron VS30-40 Variable Frequency Drive

VS30-40 3-phase supply 400/480V
